 AREA COVERAGE CHART

- Area coverage per 60min flight, including takeoff and recovery flight time. Larger areas can be covered in several flights in the same day.

- Calculated with 30% side overlap

- Calculated using the standard 24 Mp camera & lens provided

- For 3D terrain models side overlap must be minimum 60%, reducing estimated area coverage per flight

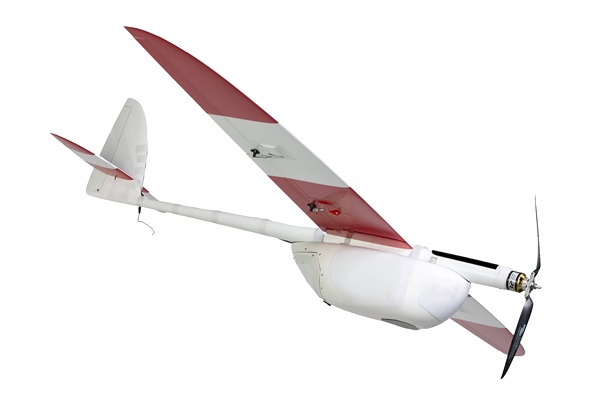

AEROMAPPER SPECIFICATIONS:

• Wing span: 2.0 m
• Construction: the airframe is made fully in reinforced carbon fiber. The Payload Bay Module is built in fiberglass and kevlar.

• Takeoff: handlaunch

• Camera: Sony a6000 with 20mm lens. More sensor are available.

• Take-off Weight: 4500 gr.

• Cruise Speed: 60 Km/h.
• Maximum speed: +120 Km/h - Great stability and minimal roll & pitch oscillations in gusty conditions thanks to its low dihedral, small lateral profile and rudder control = no gimbal required for cameras & sensors.
• Parachute recovery system: ultra compact parachute with Kevlar lines. Very easy to pack in 2 minutes. Instructions provided in User Manual.

• Endurance: 60 mins (with full payload).
• Take-off: fully automatic.
• Landing: aircraft repeat passes over desired landing area at 30-40m until parachute is deployed via a single switch. Belly landing possible with pilot assistance in autostabilization mode. Automatic parachute release on waypoint also available upon request.

• Autopilot: Pixhawk by 3DRobotics

• Data link: 2 way telemetry for in-flight commands. 915 Mhz or 868 Mhz, 20km range.

• Max. altitude: 4500 masl.
• Failsafe: Automatically returns to home & loiter upon loss of RC link. Other failsafe routines available.

• Flight modes: Manual, Stabilize, Return to Home, Loiter, Auto.
• Wind Tolerance: up to 45 km/h for flight. 25km/h for parachuting down.

• Telemetry: battery status, alt, ground speed, compass, attitude,distance travelled, time on air (speech enabled), and much more.
• Moving map display: drone position and heading, commands on map, fly to point on map, altitude changes, remote spot camera trigger, mission route, and much more.
• Low battery warning: visual and audible alarm warnings. Theresolds are user definable.
• Weather: all weather performance. The Aeromappers can fly in light rain. All it's electronics are enclosed.

• Mission Planning: altitude, side and lenght-wise overlaps, orientation of the lines, start & end waypoints, flying speed and overshoots are user definable. Drone automatically calulates fligth time, distance between images and triggers camera automatically. Distance between lines is calculated automatically according to desired side overlap. A full complex mission can be created in 5 minutes or less in the field with no internet access. Instructions provided in Manual.

• User Manual: very detailed with lots of images, videos and explanations. Among some of the sections includes: initial familiarization with the system, battery & camera installation, aircraft setup & preflight checklists, how to handlaunch, how to create & fly complete surveys, how to pack the parachute, all about Lipo batteries, and more.

The Aeromapper EV2 also complies with all the design standards for Unmanned Aerial Vehicles for Transport Canada.
